This Hammer Action micromotor is ideal for stone setting applications and engraving techniques. The force of the impact of the MH-011 reciprocating handpiece can be adjusted from light to full by turning the metal ring while the motor is off or running. The speed of the hammer action can also be varied from 0 - 5,000 strokes per minute with the dial on the control box. Used with the supplied Graver Holder, the handpiece becomes a precision power engraver- no need for an air compressor or a flexible shaft drive. This unit does not need or include a foot control.

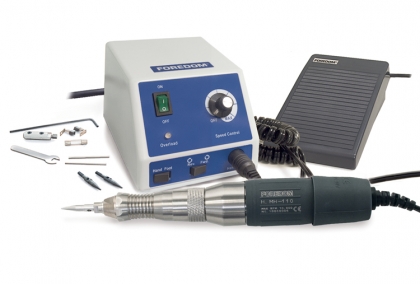

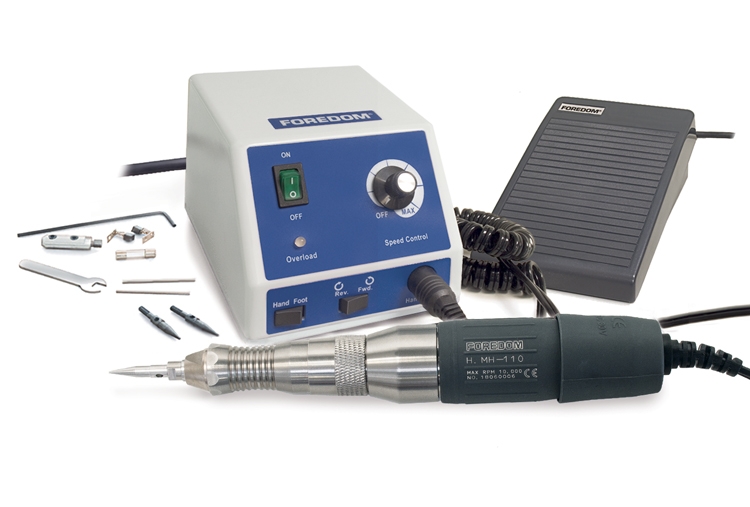

Stone Setting/Engraving Micromotor Kit 1080 includes:
- MH-011 Hammer Handpiece
- HP4-917 Control (same control as in rotary micromotor)
- H8-214 Graver Holder
- Handpiece tray and Accessories described below
MH-011 Reciprocating Handpiece:
- Has a slender contoured grip and impact adjustment ring for precise hammering work. Operates from 0-5,000 strokes per minute. Specs- 6-1/4" overall length, 9/16" grip diameter, 1" motor diameter, 13oz/369 gr., 1.5 amps (115V) .75 amps (230V)
H8-214 Graver Holder:
- Screws into the front end of the handiece and converts it into a power engraving tool. Comes with 5/64" allen key (graver not included).
Accessories included in Kit 1080:
- 3-Anvil Points with Threaded Shanks p/n 10177K
- 1-Adapter for Threaded Anvil Point p/n H8-32 (installed)
- 1-Adapter for Non-Threaded Shank Accessories p/n H8-35
- 1-Graver Holder with Allen Key p/n H8-214
- 1-5mm Open End Wrench p/n H8-38, Accessory Tray p/n AT-1, Handpiece Cradle p/n HP4-933, Spare Motor Brushes p/n HP813514, 2 Pins used to tighten Anvil POints, 1-Anvil Point Holder used for shaping the point.
