- ‘C100’ Combination Rolling Mill
- ‘R’ 4-to-1 Reduction Gearbox
- ‘E’ Side Extension with Half Round Rolls (4-1.5mm)
- 9 Wire Rolling Grooves 7mm to 1mm
- Maximum Sheet Thickness of 5.5mm
- Roll Diameter 50mm
- Roll Width 100mm (65mm / 35mm)

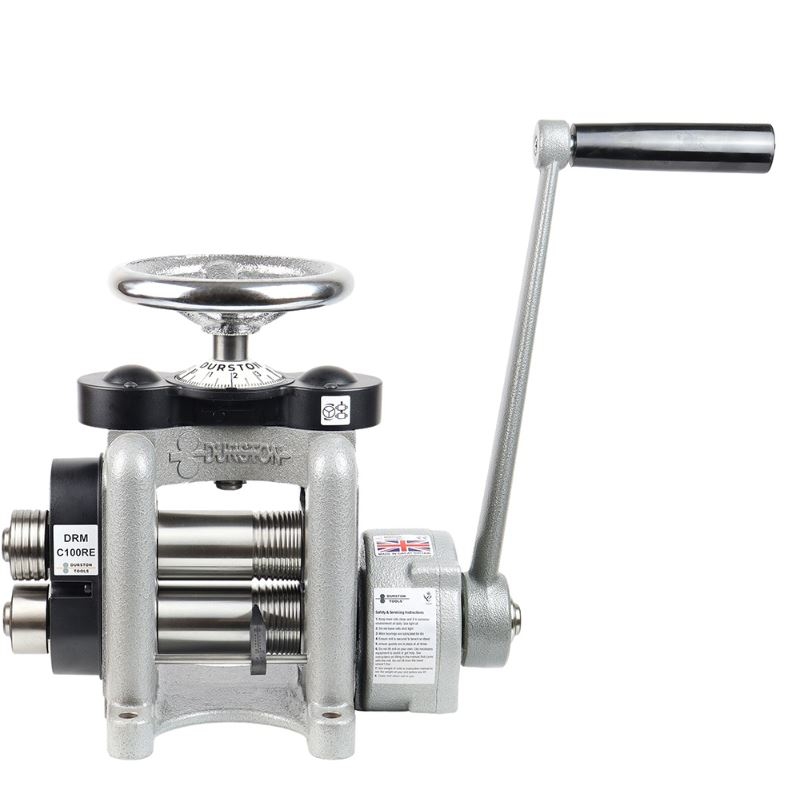

The Durston DRM C100RE Rolling Mill features our 4-to-1 Self Lubricating Gearbox giving maximum efficiency when rolling materials up to 5.5mm or wire up to 7mm, the 100mm Precision Hardened Rolls have 9 Square Rolling Grooves ranging from 7mm to 1mm in size and a 65mm Flat Rolling area (total roll width 100mm)
The DRM C100RE also includes side extension rollers with 4 half round profiles, 4mm x 1.25mm, 3mm x 1mm, 2mm x 0.75mm, and 1.5mm x 0.5mm giving even more flexibility for professional Jewellery Makers.
Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.
